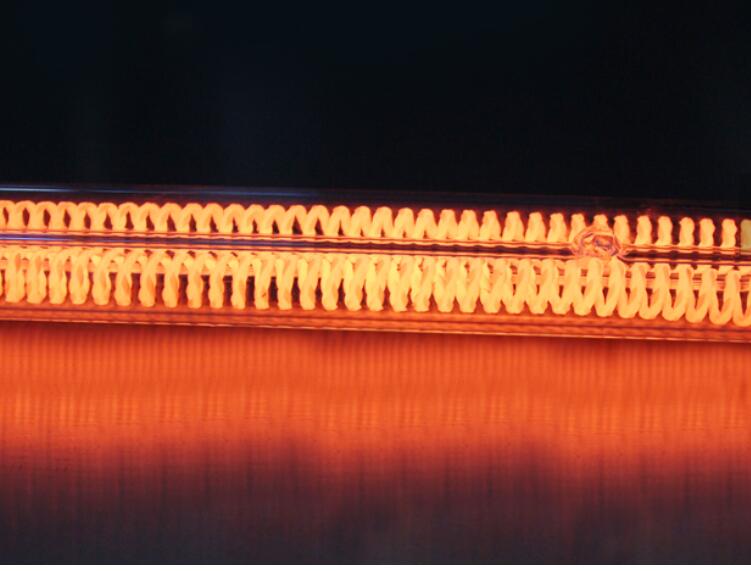

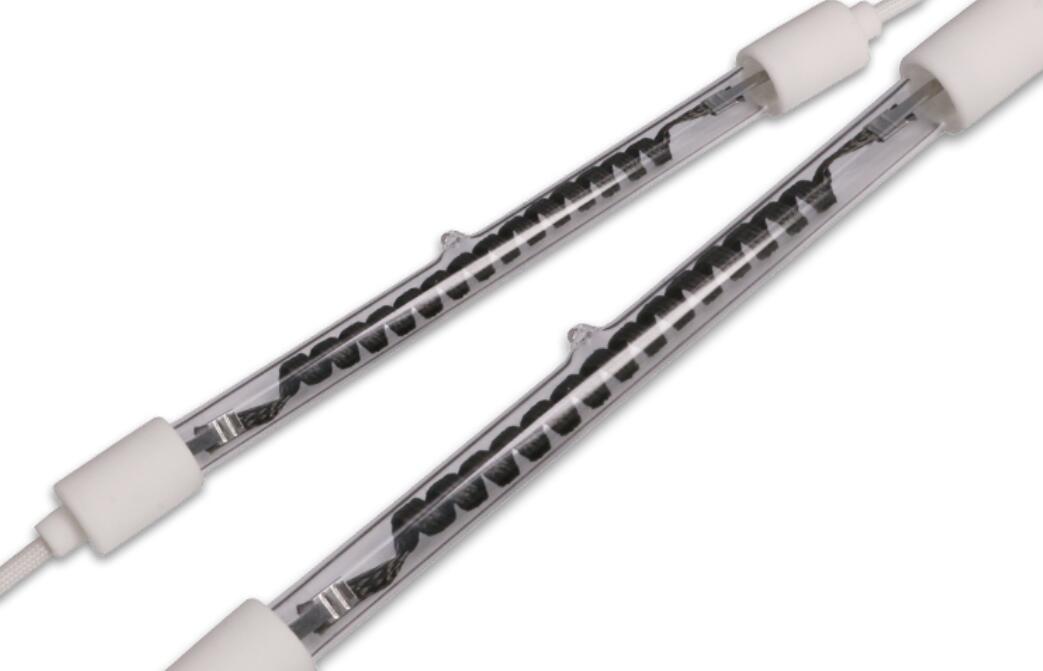

Name: Carbon Fiber Quartz Infrared Heating Tube
Brand: Hubei Yunsheng
Price: 100.00 HKD
Availability: InStock

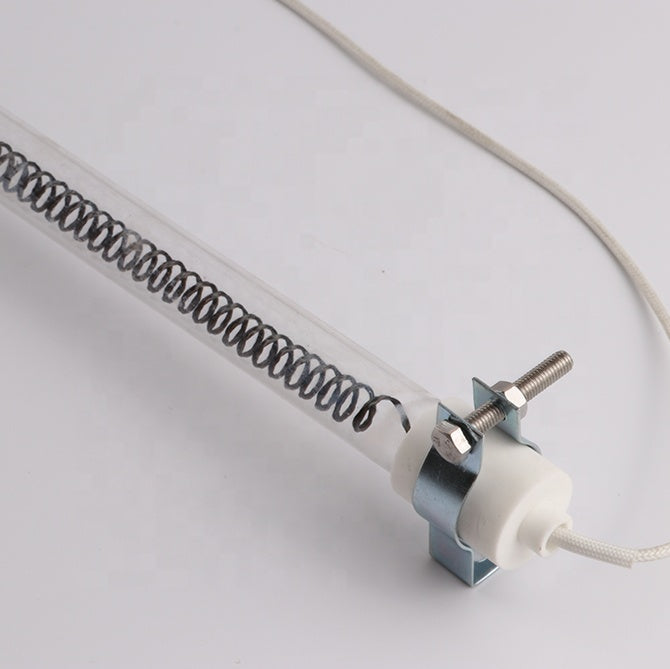

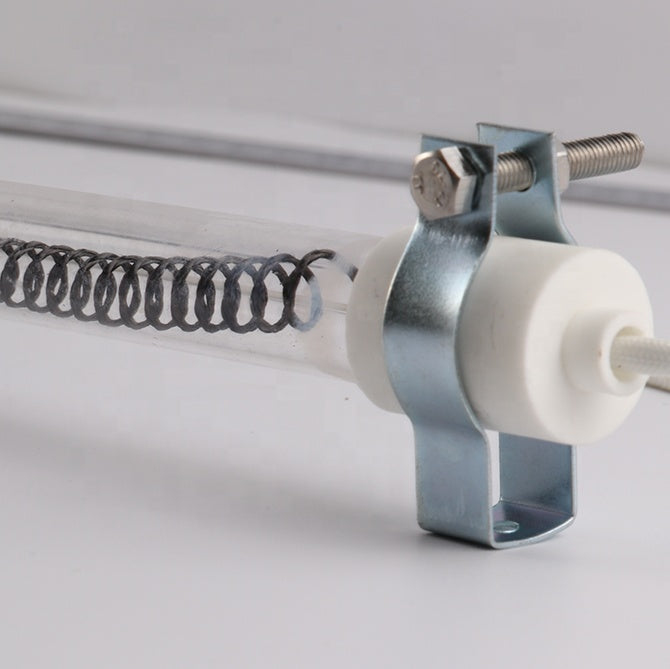

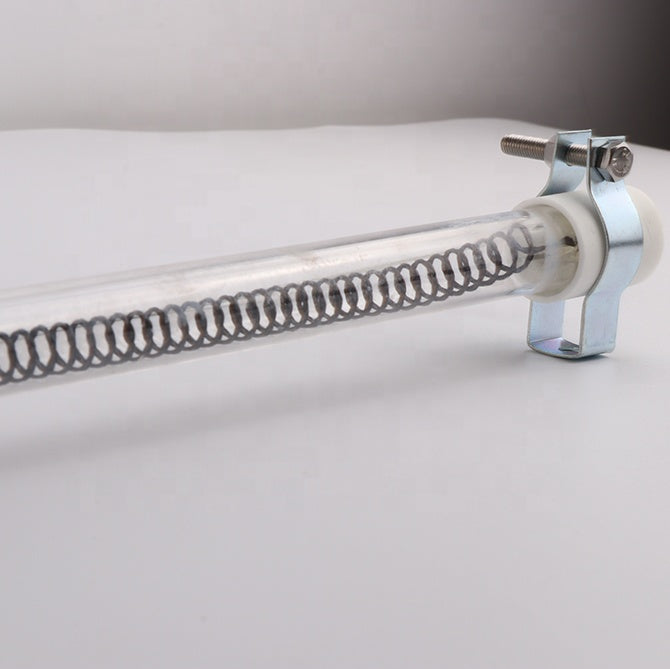

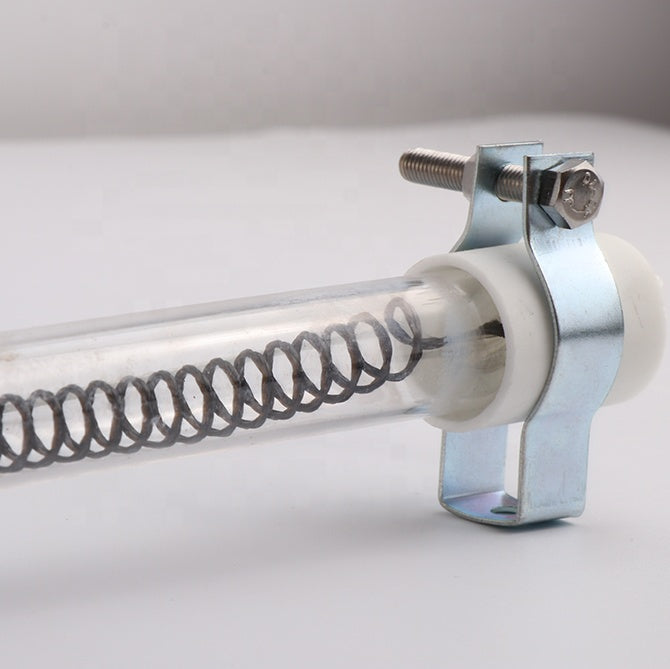

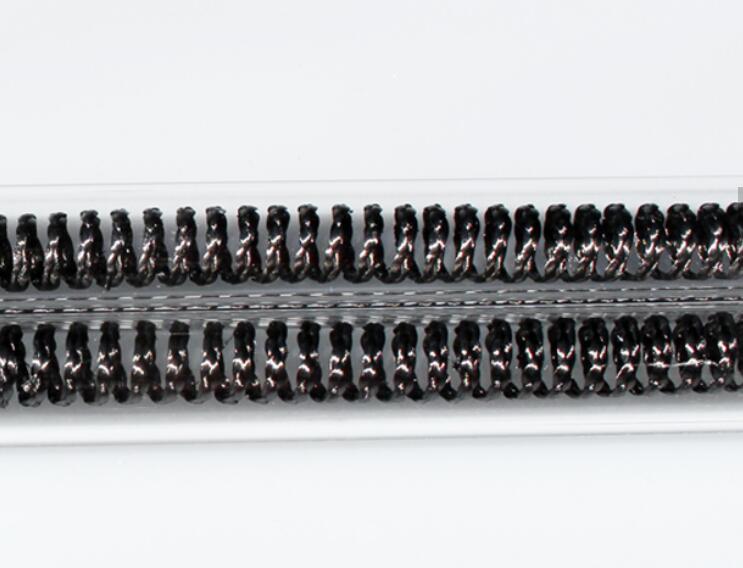

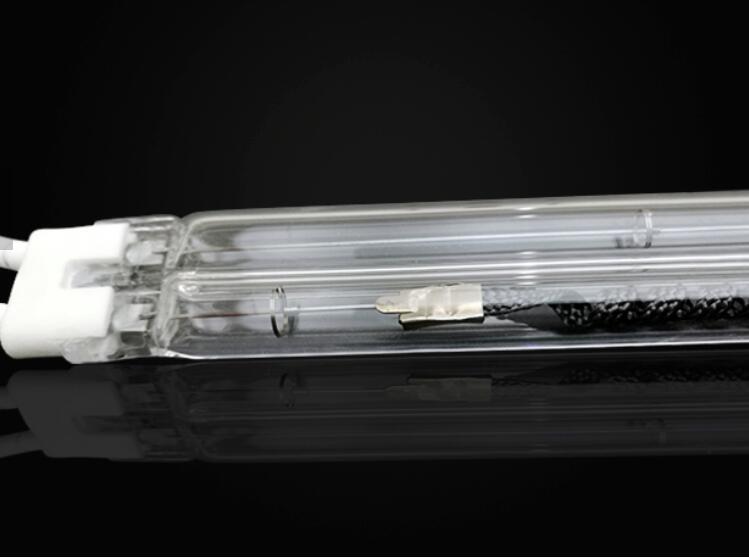

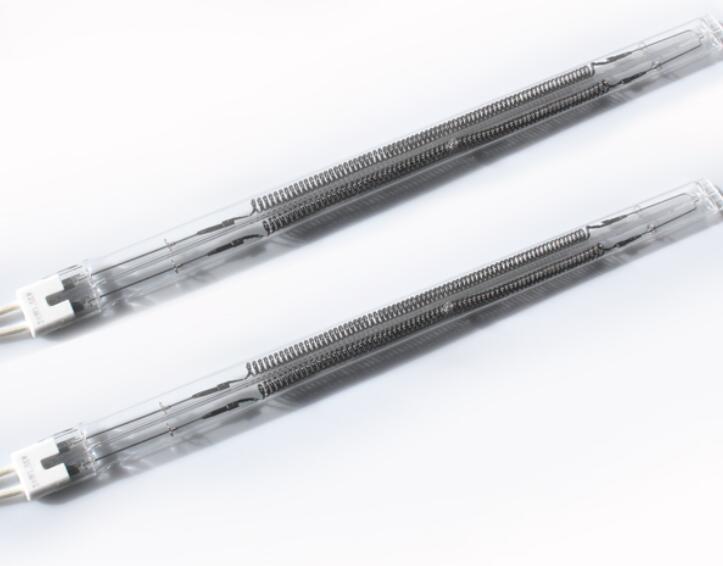

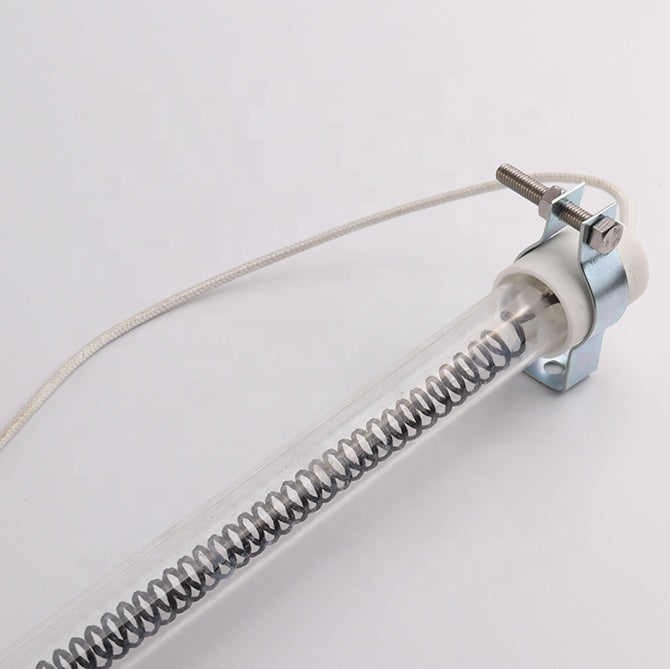

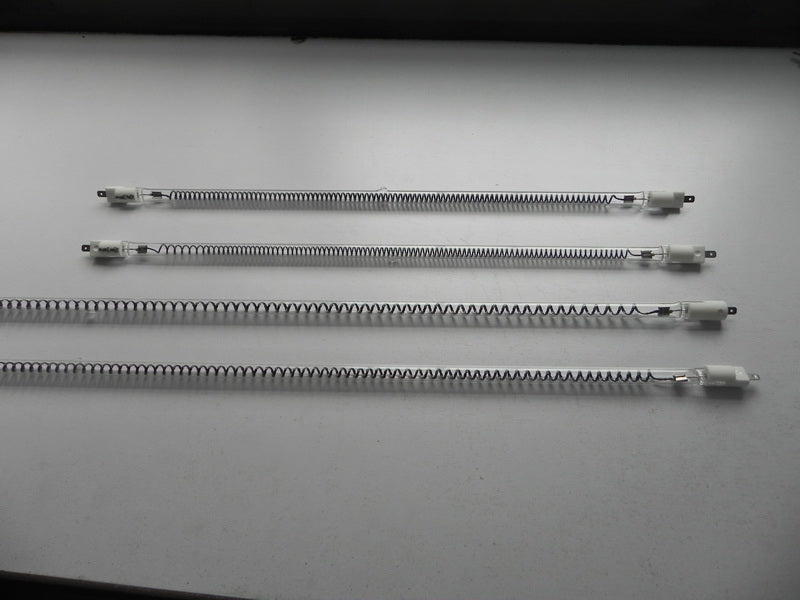

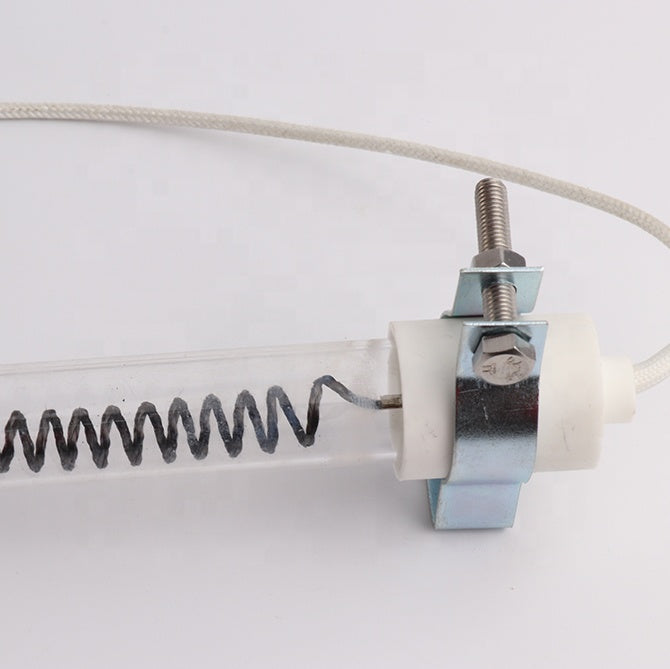

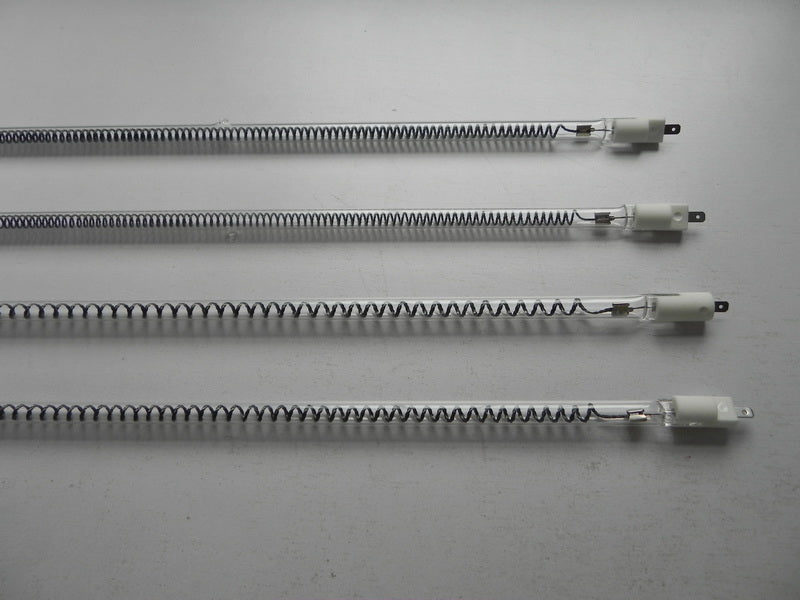

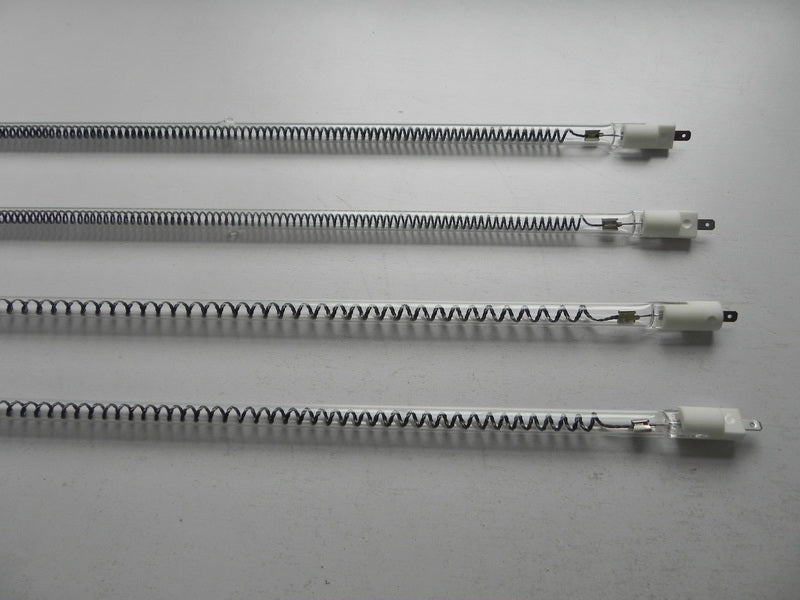

Carbon Fiber Quartz Infrared Heating Tube

$100.00

Carbon Fiber Quartz Infrared Heating Tubes 220V Fast Response IR Lamps

Our carbon fiber quartz infrared heating tubes adopt carbon fiber heating elements, available in clear quartz or ruby glass tube. Without inner coating needed, they produce soft light output. Wide customization on voltage, wattage and length is supported, with straight or round shapes optional. Rated for 5000 working‑hours warranty, they are well‑suited for automotive paint drying, spray booths and other short‑range heating scenarios.

High Power Carbon Fiber Quartz Infrared Heating Tube, 220V, 300mm, Fast Response IR Lamp for Automotive Paint Drying & Spray Booths

Description

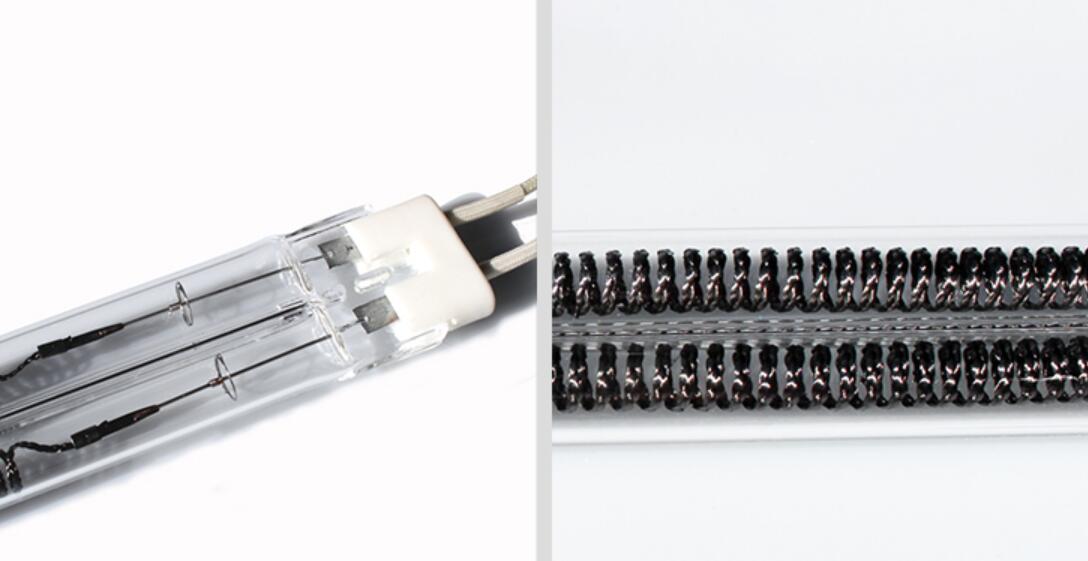

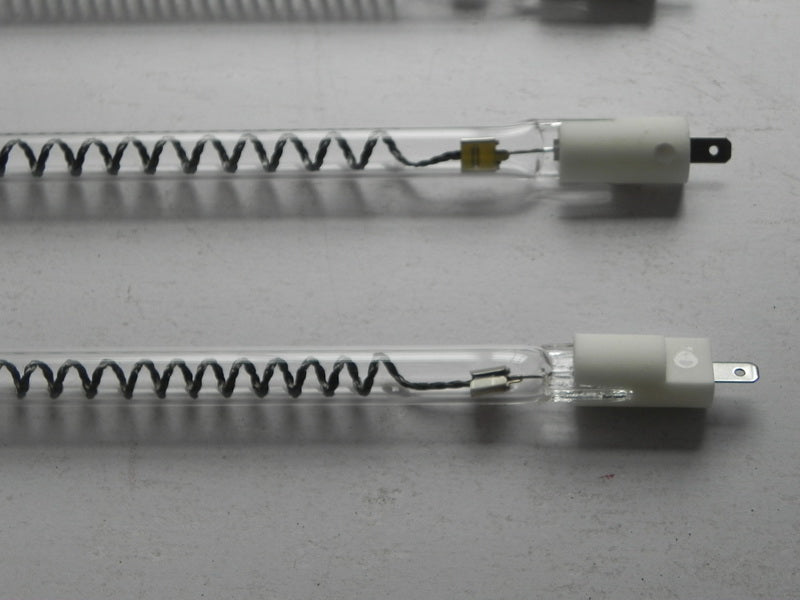

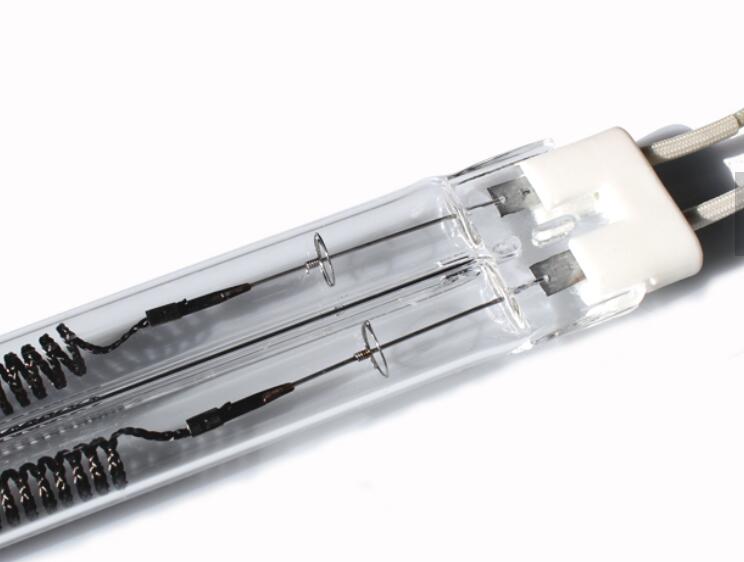

This carbon fiber quartz heater adopts carbon fiber heating elements. You can choose clear quartz glass tubes or ruby glass tubes.

Our infrared quartz heaters also include halogen quartz heaters and alloy wire heating quartz heaters. Standard quartz heaters use specially processed milky white or clear quartz glass tubes with resistance alloy wires as heating elements. Due to high surface temperature of the tube wall, they are only suitable for short-range heating. Halogen quartz heating tubes contain tungsten filaments sealed inside quartz tubes. Light wavelength ranges from 2400 nm to 3500 nm. It is a vacuum heating tube.

Specifications

Item	Details

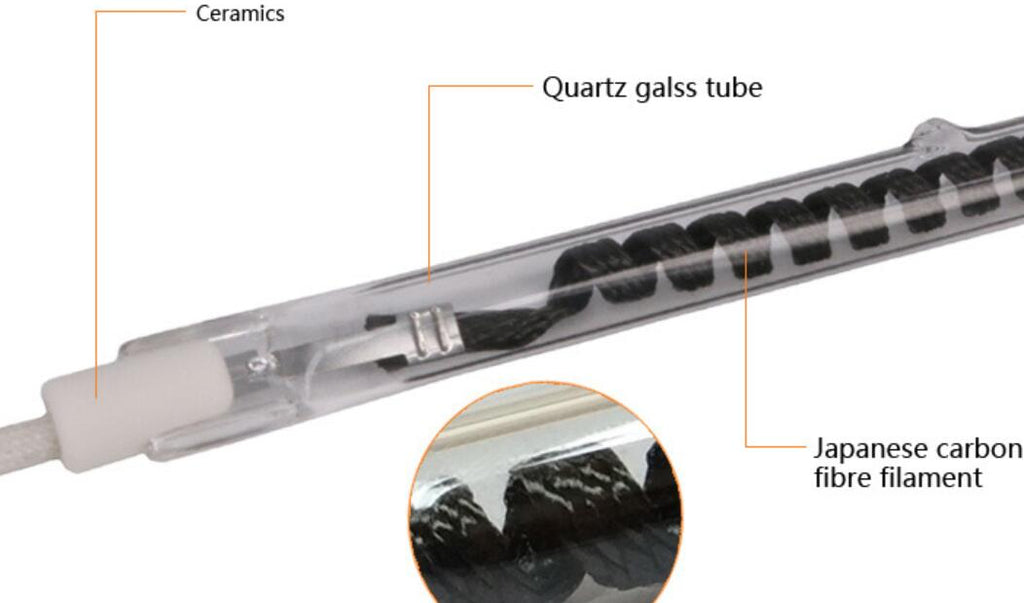

Material	Clear quartz tube / Ruby glass tube with carbon fiber filament
Shape	Straight or round
Reflector	Carbon fiber heaters require no coating, delivering soft light output
Voltage	Customized: 110V,120V,200V,220V,230V,240V,400V,480V
Wattage	300W – 3000W, custom wattage available
Length	100mm – 2000mm
Warranty	5000 working hours
